Laser cutting references/cost

Posted by Taylor Bernard on March 27, 2015

original estimate was:
445$ material + cutting cost
85$ laser setup
20$ shipping

says laser cutting cost in that is about 100$.
so 335$ in material.

can get material else where WAY cheaper.
possibly sub 160$.
so possibly 345$ material + cutting

wish i could get that 85$ down, but they havent wanted to budge on that setup charge last couple times.

Comments

Justin Bernard on March 27, 2015:

Dang that's high for metal

Will they cut stuff we supply though?

Taylor Bernard on March 27, 2015:

yeh i dont see why not.

yeh didnt expect it to be that much. couple of small pieces ive goten before havent been that noticeably bad guys even if its just slightly higher * quantity we need it gets $

Justin Bernard on March 30, 2015:

anything happen here on the mockup/etc front?

Taylor Bernard on March 30, 2015:

trying to get some stuff into c4d to mess with overlay effect

Justin Bernard on March 30, 2015:

can maybe just do in 2d/photoshop?

Taylor Bernard on March 30, 2015:

want to try and get a better look than that. just stacking layer on top of another layer with a cutout, pretty much already know what that looks like 2d

Taylor Bernard on March 30, 2015:

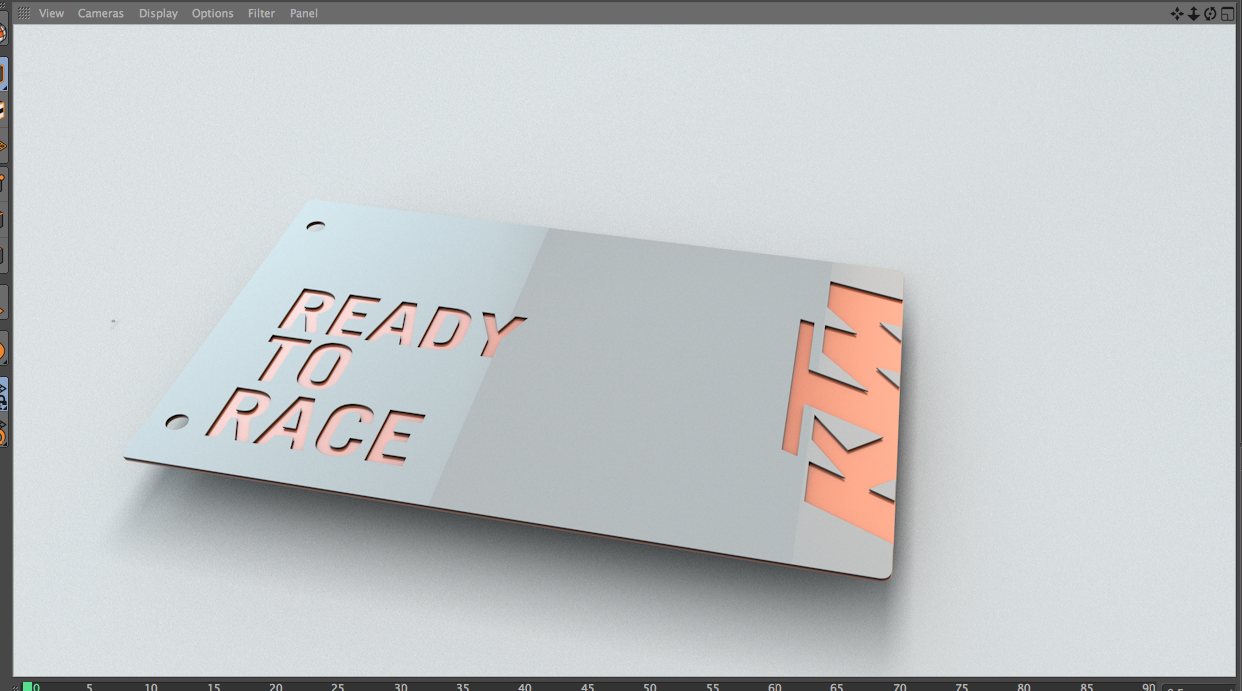

i think the overlay effect would look pretty cool. gonna finish building the pages out and do a ring binder.
lines in the texture is just reflection from light box

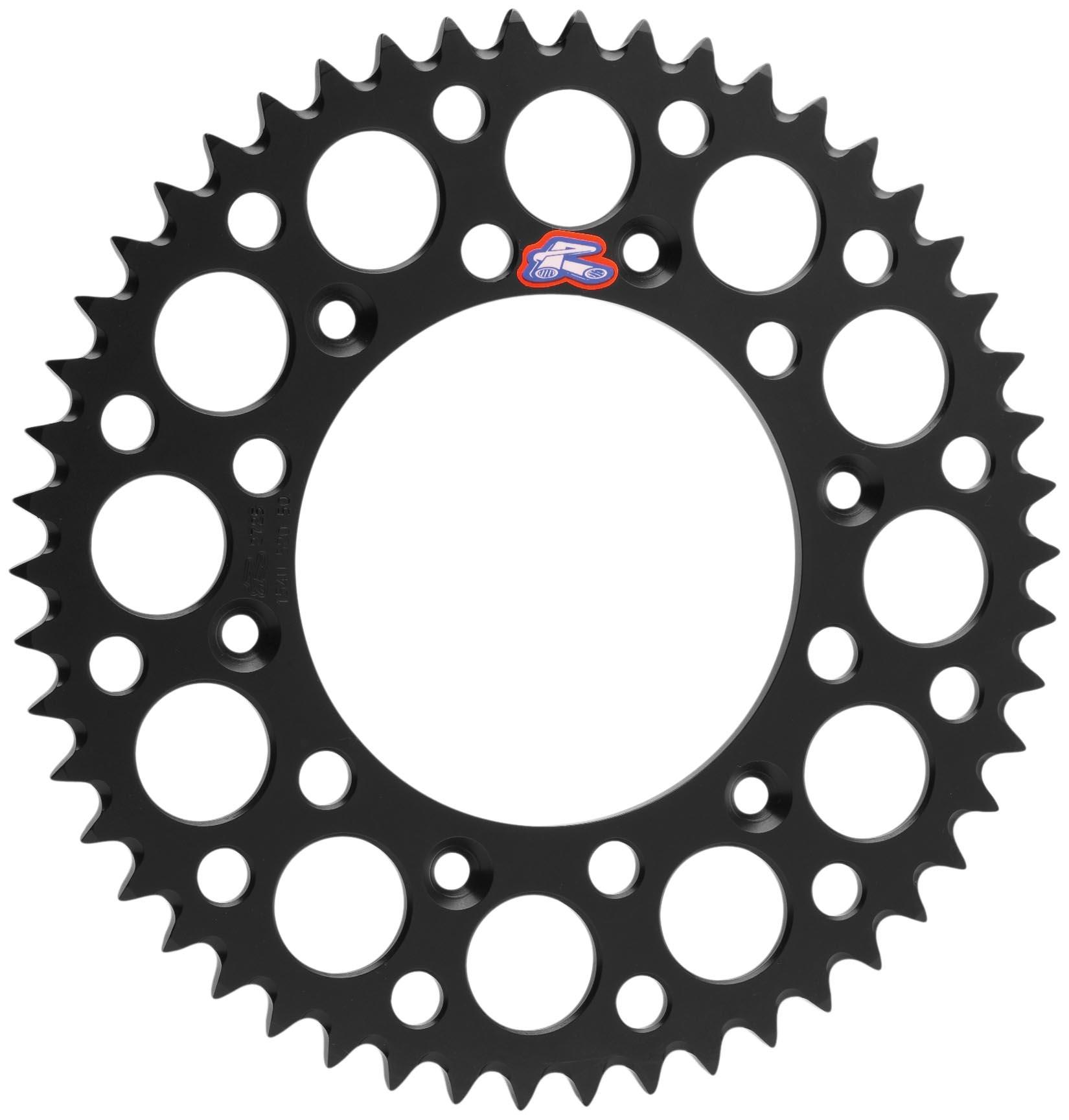

also i know you said you wanted to try to incorporate a 'race part' into the design. what about the right side where i have the ktm logo something like the edge of a rotor or sprocket. maybe 'uncurled' into a flat side, or have a semi circle side on the booklet, would take a lot of the real estate away but may not need it.

Justin Bernard on March 30, 2015:

Will need to make sure no floating shapes due to laser cutting, lie the triangles are above on m and k

Taylor Bernard on March 30, 2015:

yeh wanted a cropped logo look and not it stuck on there off the border. was just a test

Taylor Bernard on March 30, 2015:

Taylor Bernard on March 30, 2015:

heres was a couple of cool ideas i played off of.

Justin Bernard on March 31, 2015:

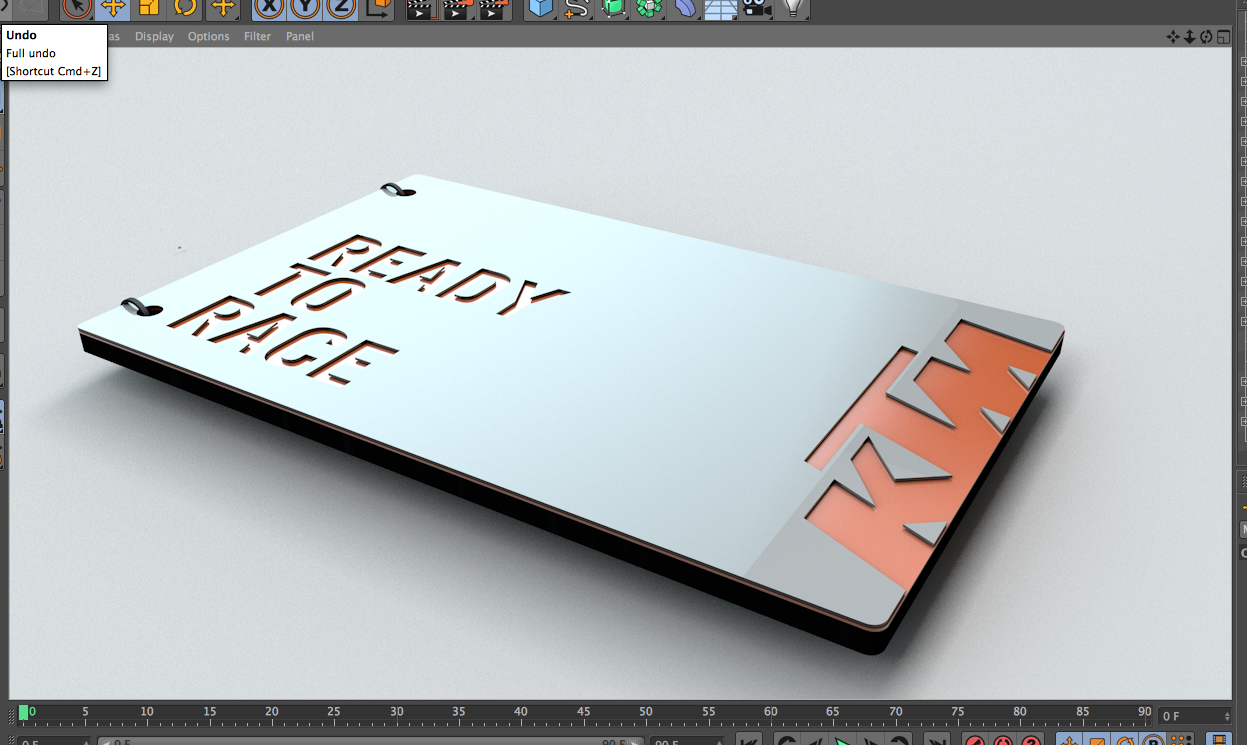

Super clean render btw (yours)

Justin Bernard on April 3, 2015:

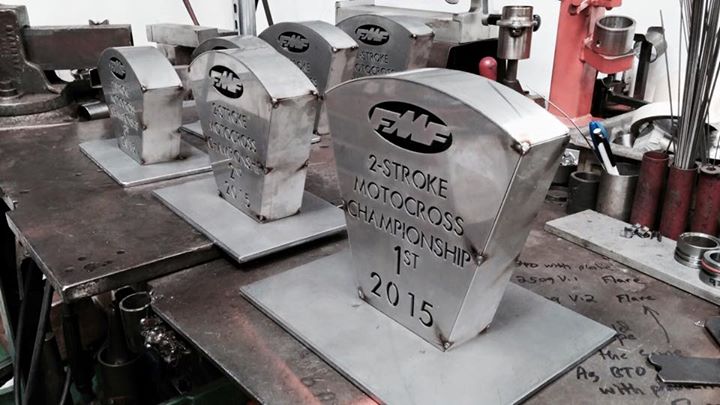

uh, check these

sold me on cover idea.
