Callidus Cloud

Digital Kiosk Design + Development

hardware order

Posted by Justin Bernard on September 8, 2014

- mac mini
- video cable - 3'-5'
- displayit stand (see what print extra panel costs)
- give me options for 40" display
- 40" touch overlay
- do we ened vesa mount or use whats on displayit stand?
- sonnet macmini mount

Comments

Justin Bernard on September 9, 2014:

price above items out, let me know before you order any big $ ones.  first thing get details from displayit on additional panels/prints for stand

Justin Bernard on September 9, 2014:

be sure list prices/locations before order

lorrie has a deal through ebates to get like 3% off through amazon and macmall

Justin Bernard on September 9, 2014:


where we at with price list/eta?

Taylor Bernard on September 9, 2014:

price list?

Justin Bernard on September 9, 2014:

"Justin Bernard
price above items out, let me know before you order any big $ ones.  first thing get details from displayit on additional panels/prints for stand
Posted an hour ago – Edit or Delete"

Justin Bernard on September 9, 2014:

also never heard back from two emails on hours you want to do for lunch/etc.

Taylor Bernard on September 9, 2014:

i already priced every one of those out in the pdf estimate except for the exact tv model. which will take a bit to find which one looks the best

Justin Bernard on September 9, 2014:

right on, i mean figure out best place to buy them, throw links up here.  ill get lorrie to order a few of them through her ebates deal to save a few dollars.  then on the tv, show me options of what your looking for

also on the displayit stand, we ever figure out if tv will bolt directly to it without an additional mount purchase?

Taylor Bernard on September 9, 2014:

yes the stand has a tv mounting system. else its just 2 poles with a base

Taylor Bernard on September 9, 2014:

I dont think we can use the sonnet mac mini bracket on this stand. they dont really use a normal vesa mount system to mount to the kiosk. i dont think theres anywhere to attach.
will they be fine with just sitting the mac mini on the shelf behind the kiosk?

http://www.displayit.com/downloads/setup/displayit-products/Displayit_Dual_Column_Monitor_Stand_Assembly.pdf

Justin Bernard on September 9, 2014:

go ahead and get a sonnet, i may just bolt it to the table.  no way going to leave it loose/not lockable.

Justin Bernard on September 9, 2014:

have you ordered anything?  still no reply to email.  see i'm about to go to lunch but could plan it with yours.  otherwise we lose 2hrs instead of 1 if we dont overlap somewhat.

Taylor Bernard on September 9, 2014:

lorrie can get these:

http://www.amazon.com/Maccuff-Mini-Vesa-Mounting-Models/dp/B0043IA6J0/ref=sr_1_1?ie=UTF8&qid=1410279399&sr=8-1&keywords=maccuff

http://www.macmall.com/p/Apple-Mac-Mini/product~dpno~9418664~pdp.iadfcjd

i'm on the tv/pq labs/display it stuff

Justin Bernard on September 9, 2014:

cheaper on bh, and they have the sonnet for cheaper (i just remember that because thats where got the ones for my local kiosk 2 mo ago)

http://www.bhphotovideo.com/c/product/897209-REG/Apple_md387ll_a_Mac_mini_Desktop_Computer.html

for some reason bh is like cheaper on stinking everything ive gone to buy for a couple years.  see if they have displays too.  they free ship everythign, and super close to me.

Taylor Bernard on September 9, 2014:

yeh thats surprising. sometimes they are out of stock and try to hide it well. then hit you in a 2wk wait.  juden.

tv i have linked in the pdf estimate for the 40" class is on amazon but showing discontinued elsewhere.

BH has this one for a good deal. 500$

http://www.bhphotovideo.com/c/product/1026267-REG/samsung_un40h6350afxza_40_h6350_series_full.html

Justin Bernard on September 9, 2014:

crud, that ebates thing she had only worked with macmall and not BH (thoguht it did), but bh so much cheaper its better to go through them

go ahead and please order it all yourself here, once you verify the display will work with pq overlay

all ship to 13 oakwilde drive, asheville, nc 28803

thx


$500 display (link only works for an hour i think)

http://www.bhphotovideo.com/c/product/1026267-REG/samsung_un40h6350afxza_40_h6350_series_full.html

$550

http://www.bhphotovideo.com/c/product/897209-REG/Apple_md387ll_a_Mac_mini_Desktop_Computer.html


$48

http://www.bhphotovideo.com/c/product/739604-REG/Sonnet_CUFF_MIN_LH_CUFF_MIN_LH_MacCuff_Mini.html


Taylor Bernard on September 9, 2014:

waiting on display feedback before i order. called Peau and must be at lunch. san fran time. took a while but found bezel measurements on Samsung display and its really thin.

Taylor Bernard on September 9, 2014:

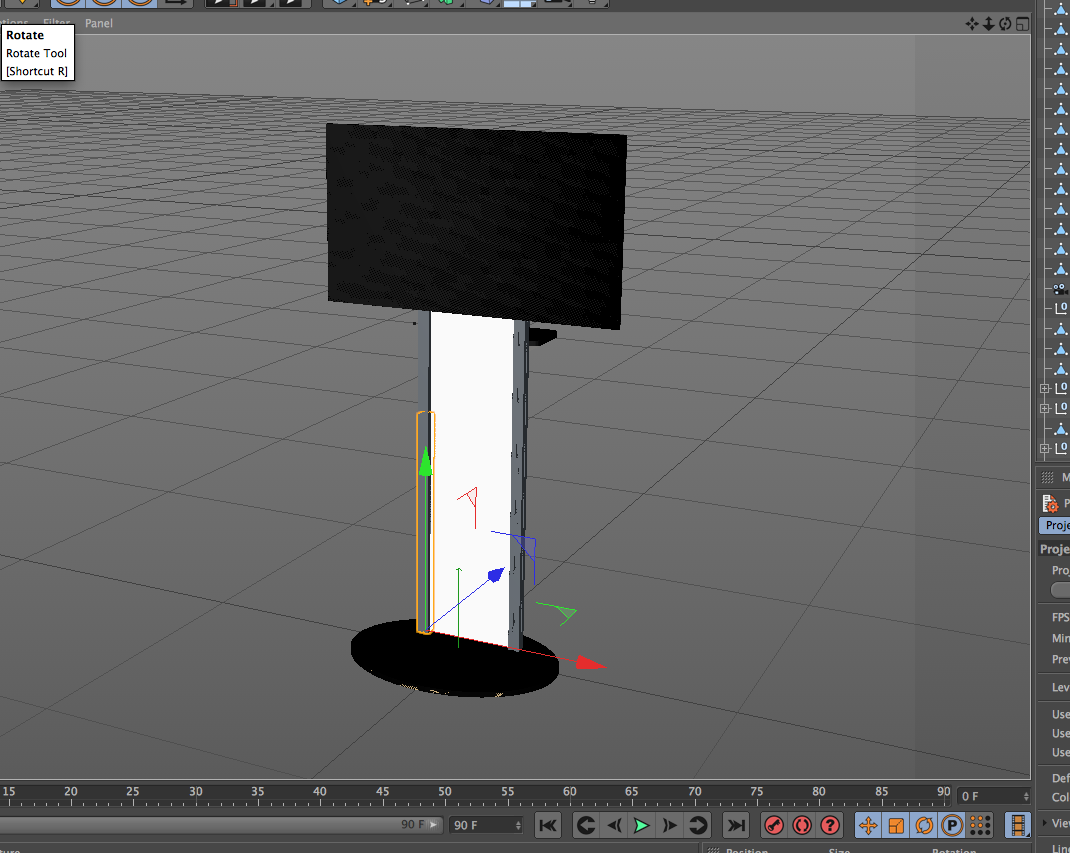

have a working kiosk model for c4d. its unskinned and will take a bit to make it look decent though.

Justin Bernard on September 9, 2014:

nice. screencap what it looks like as is? like it would be fine if you could just apply our graphics to the model, and the rest of it was almost wireframe...

Taylor Bernard on September 9, 2014:

Justin Bernard on September 9, 2014:

that be fine

all wanted it for was so we can do mockup with some panel graphics and not have them look like junk because we had to photoshop skew

once thats rendered even like that it will be 10x better,no jaggies i bet.

Taylor Bernard on September 9, 2014:

you good on that TV? final call

Justin Bernard on September 10, 2014:

tv/comp and related stuff ordered right.  also saw lorrie got order receipt from peau.  you got that with glass right

where stuff for today?  keyboard/mouse etc.  you working on that still or working on callidus?  finish the hardware first then hop callidus
thx

Taylor Bernard on September 10, 2014:

mac's wired keyboard is more expensive than the btle version.

what you think about this one

http://www.amazon.com/Boxcave-Aluminum-Keyboard-Notebook-Netbook/dp/B00EDI0WW6/ref=sr_1_3?s=electronics&ie=UTF8&qid=1410363513&sr=1-3&keywords=apple+usb+keyboard

http://www.amazon.com/Macally-Button-Optical-BUMPER-MOUSE/dp/B00EQ94566/ref=pd_bxgy_pc_img_y

Justin Bernard on September 10, 2014:

that will work.  what about hdmi cable?

Taylor Bernard on September 10, 2014:

http://www.monoprice.com/Product?c_id=102&cp_id=10240&cs_id=1024008&p_id=3871&seq=1&format=2

id get some usb cables in case those keyboard/mouse cables are short. the keyboard doesnt have a usb hub on it either

2x
http://www.monoprice.com/Product?c_id=103&cp_id=10303&cs_id=1030304&p_id=5433&seq=1&format=2

Justin Bernard on September 10, 2014:

comparable price on amazon so not have to pay more in ship than the cable?

Justin Bernard on September 10, 2014:

also you didnt answer my question few above.  everything else ordered with exception of cable/keyboard/mouse?

touch overlay coming in has glass?

had you already been working on callidus fla production?  how that going?  have everythign you need?  still not on skype?

Taylor Bernard on September 10, 2014:

go with monoprice. shipping is only a couple $ and usb cables are 5$ cheaper each one.

Justin Bernard on September 10, 2014:

k.  go ahead and order it for me since its monoprice.  i already have usb extension we can use if we need it so don't worry about anything but hdmi.  get 2 though, i want a short one for my home kiosk, right now have 25' of cable looped...

Taylor Bernard on September 10, 2014:

no usb hub on keyboard. need to extensions for them

Justin Bernard on September 10, 2014:

already have ton of extensions here that i can use/give if need one.

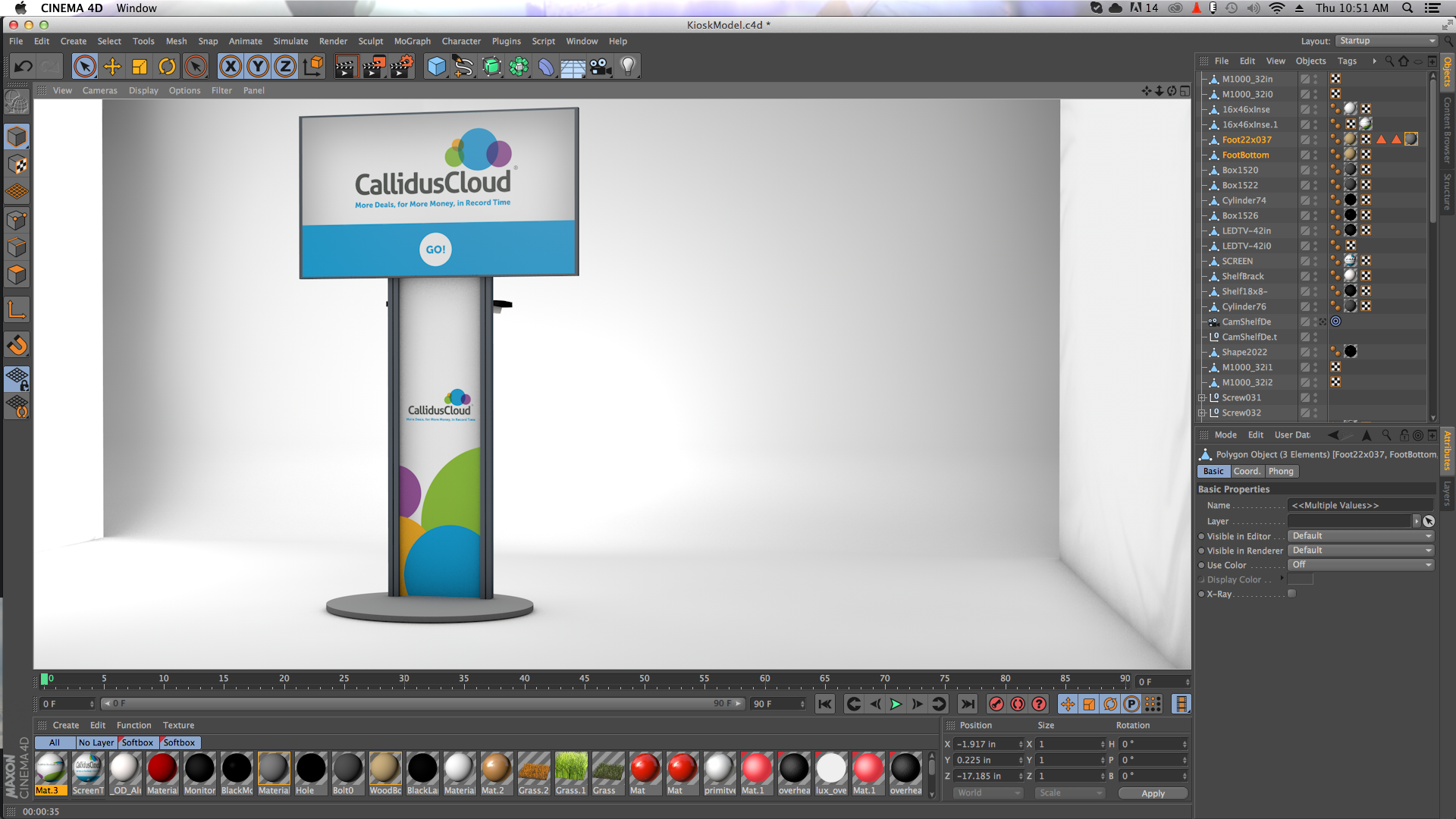

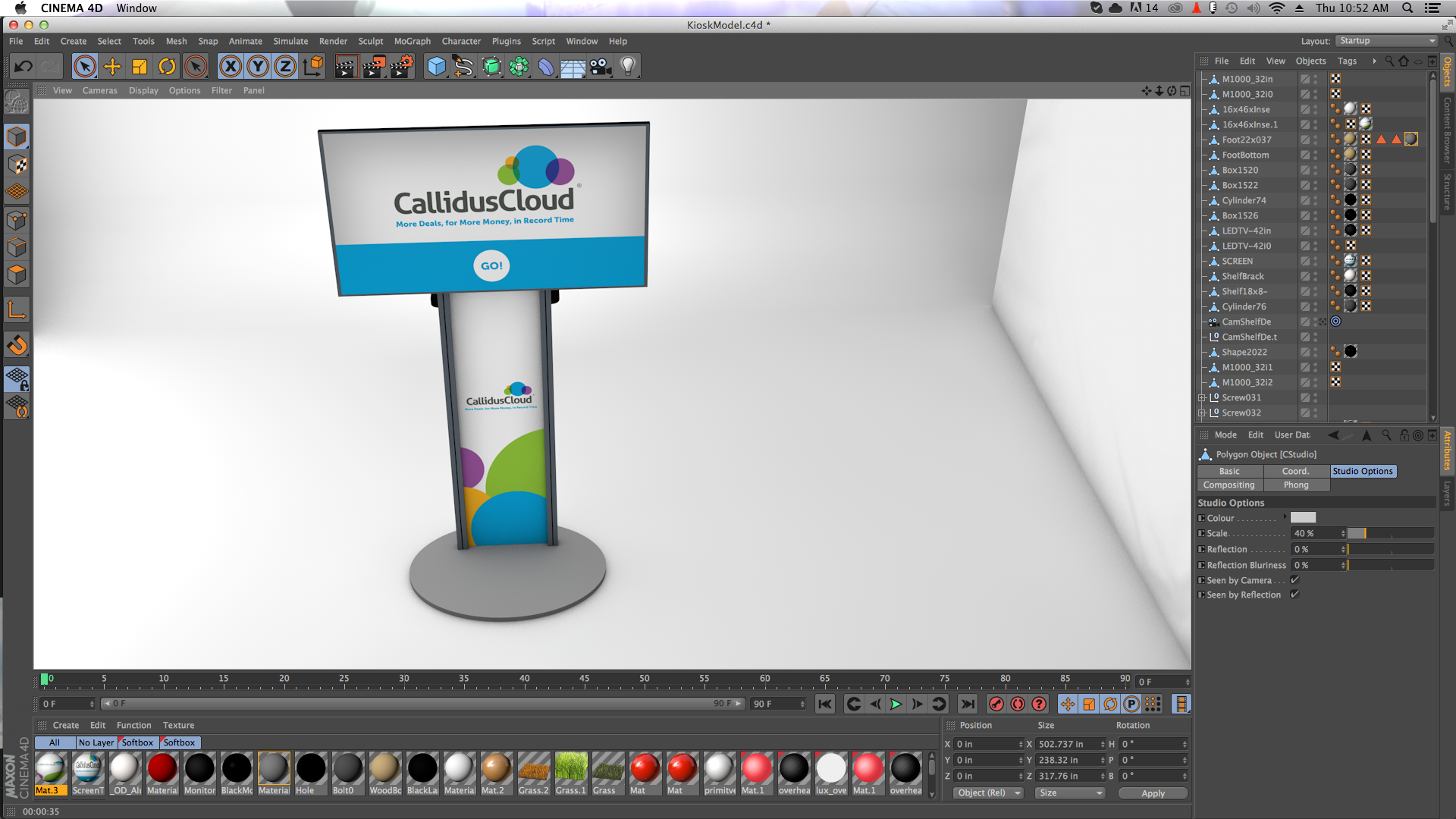

Taylor Bernard on September 11, 2014:

Justin Bernard on September 11, 2014:

nice nice thx.  hit one for litmus too.  on the bottom, do like a crop with the big giant circle logo, like so you can see 1/3 of it and the rest green

Justin Bernard on September 11, 2014:

also shoot me jpgs for a few of those views of callidus

Justin Bernard on September 11, 2014:

on callidus on the bottom texture, drop the tagline under the callidus logo since its so small.  and see if you can use the exact circle configuration the way they have it in the logo (with the color overlaps and positioinng) maybe just rotate the logo circles till it fits the space.  they may get werid about messing with those circles and so lets just not go there

thx

Taylor Bernard on September 11, 2014:

move it around like you need it

cloud.fleeangrybear.com/2W111N0c2L3M

Justin Bernard on September 11, 2014:

was just meaning something like this

http://cloud.fleeangrybear.com/2j0j2u0n0v2C

Taylor Bernard on September 11, 2014:

kiosk renders
http://cloud.fleeangrybear.com/0v2R361U3z2I

Justin Bernard on September 11, 2014:

look awesome thanks much

on to sense/stat.  have somethign you can work on there are hands tied till oshpark in?  what eta on that btw?

Taylor Bernard on September 11, 2014:

dunno. they est 12 days but hear people getting faster than that.
need to decide what to do with enclosure ideas next. like i mentioned in scrum.

Justin Bernard on September 11, 2014:

i had asked questions about the enclosure but didnt hear back.  hop on that thread...
